Data Pipeline

API Documentation

laktory.models.Pipeline

The Pipeline model is the cornerstone of Laktory, orchestrating the process of reading, transforming, and writing data. It is built around the concept of the DataFrame—a two-dimensional, tabular data structure with labeled rows and columns—commonly used in data analysis for efficient data manipulation. While Pandas, Spark, and Polars are popular DataFrame backends, Laktory primarily operates on Narwhals DataFrames. This abstraction allows seamless integration with multiple engines (e.g., Spark, Polars) and enables selecting the most suitable backend for each operation.

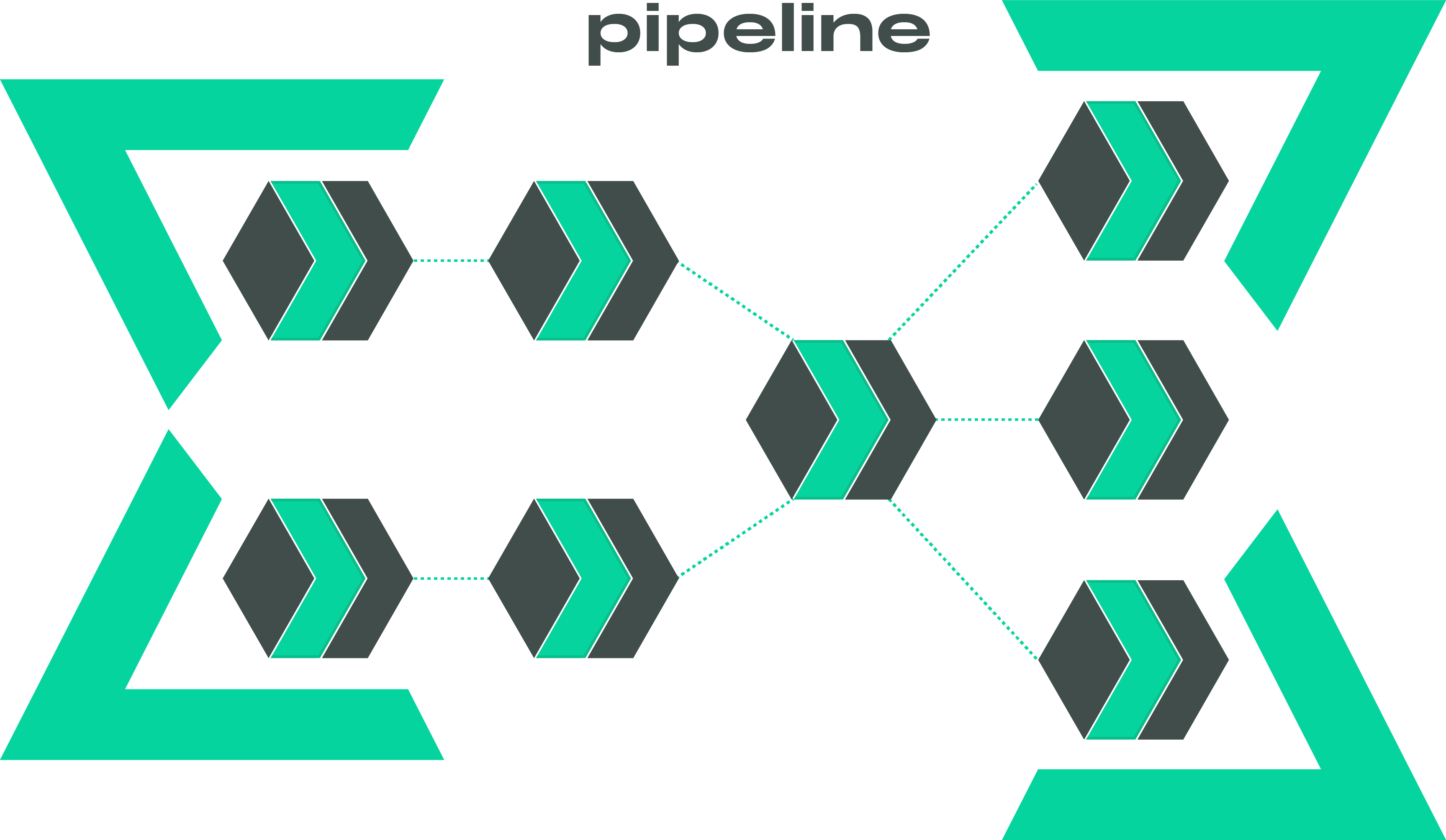

data pipeline

Pipeline Node¤

API Documentation

laktory.models.PipelineNode

A pipeline is composed of a sequence of nodes, each designed to generate a Spark or Polars DataFrame. Each node reads from a designated source, applies specified transformations, and optionally writes the result to one or more sinks.

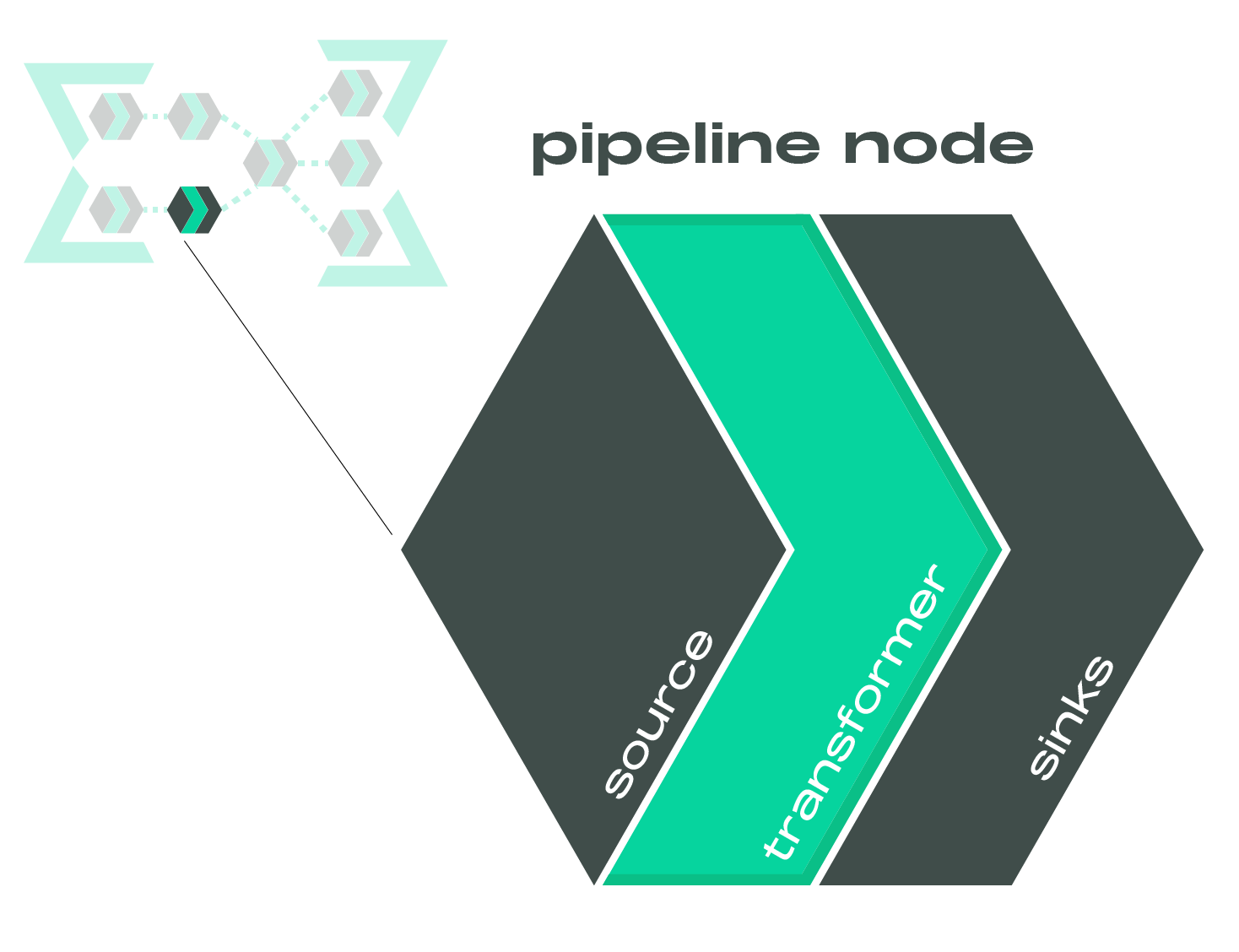

data pipeline node

Sources and Sinks¤

node source node sink

Laktory supports a variety of sources and sinks, including data files and data tables. By linking a node as the source for a downstream node, you establish dependencies, creating a directed acyclic graph (DAG).

Transformer¤

node transformer

The transformations are defined through a transformer which is a chain of SQL statements and/or DataFrame API function calls. This flexible and highly modular framework supports scalable batch and streaming operations.

Expectations¤

node transformer

Data quality is achieved through the use of expectations and corresponding actions, which can drop, quarantine, or even halt pipelines if invalid data is detected before it reaches the output.

Declaration¤

Because a pipeline definition is entirely serializable, it can be declared as Python code or as a YAML file. The latter provides the required portability for deployment on remote compute environments. This makes Laktory ideal for a DataOps approach using infrastructure-as-code principles.

Here is an example of a pipeline declaration:

name: pl-stock-prices
dataframe_backend: POLARS

nodes:
- name: brz_stock_prices
  source:
    path: ./data/stock_prices/
    format: JSONL
  sinks:
  - path: ./data/brz_stock_prices.parquet
    format: PARQUET

- name: slv_stock_prices
  source:
    node_name: brz_stock_prices
    as_stream: false
  sinks:
  - path: ./data/slv_stock_prices.parquet
    format: PARQUET
  transformer:
    nodes:
    - expr: |
        SELECT
          CAST(data.created_at AS TIMESTAMP) AS created_at,
          data.symbol AS name,
          data.symbol AS symbol,
          data.open AS open,
          data.close AS close,
          data.high AS high,
          data.low AS low,
          data.volume AS volume
        FROM
          {df}
    - func_name: unique
      func_kwargs:
        subset:
          - symbol
          - created_at
        keep:
          any
import laktory as lk

brz = lk.models.PipelineNode(
    name="brz_stock_prices",
    source=lk.models.FileDataSource(
        path="./data/stock_prices/",
        format="JSONL",
    ),
    sinks=[
        lk.models.FileDataSink(
            path="./data/brz_stock_prices.parquet",
            format="PARQUET",
        )
    ],
)


slv = lk.models.PipelineNode(
    name="slv_stock_prices",
    source=lk.models.PipelineNodeDataSource(node_name="brz_stock_prices"),
    sinks=[
        lk.models.FileDataSink(
            path="./data/slv_stock_prices.parquet",
            format="PARQUET",
        )
    ],
    transformer={
        "nodes": [
            lk.models.DataFrameExpr(
                expr="""
                 SELECT
                      CAST(data.created_at AS TIMESTAMP) AS created_at,
                      data.symbol AS name,
                      data.symbol AS symbol,
                      data.open AS open,
                      data.close AS close,
                      data.high AS high,
                      data.low AS low,
                      data.volume AS volume
                    FROM
                      {df}
                """
            ),
            lk.models.DataFrameMethod(
                func_name="unique",
                func_kwargs={
                    "subset": ["symbol", "created_at"],
                    "keep": "any"
                }
            )
        ]
    }
)

pl = lk.models.Pipeline(
    name="pl-stock-prices",
    dataframe_backend="POLARS",
    nodes=[brz, slv],
)

Execution¤

Local¤

You can execute the pipeline in a local or remote Spark session using the pipeline.execute() command. If Polars is the DataFrame engine, the pipeline can run in a simple Python environment without external dependencies. In all cases, each node processes sequentially: reading data from the source, applying transformations, and writing to the sink.

from laktory import models

with open("pipeline.yaml") as fp:
    pl = models.Pipeline.model_validate(fp)

pl.execute()
print(pl.nodes_dict["slv_stock_prices"].output_df.to_native().collect())
output
[laktory] Executing pipeline node slv_stock_prices
[laktory] Reading `PipelineNodeDataSource` brz_stock_prices with DataFrameBackends.POLARS
[laktory] Reading pipeline node brz_stock_prices from output DataFrame
[laktory] Read completed.
[laktory] Executing DataFrame Transformer
[laktory] Executing DataFrame transformer node 0 (DataFrameExpr).
[laktory] DataFrame as
SELECT
  CAST(data.created_at AS TIMESTAMP) AS created_at,
  data.symbol AS name,
  data.symbol AS symbol,
  data.open AS open,
  data.close AS close,
  data.high AS high,
  data.low AS low,
  data.volume AS volume
FROM
  {df}
[laktory] Executing DataFrame transformer node 1 (DataFrameMethod).
[laktory] Applying df.unique(subset=['symbol', 'created_at'],keep=any)
[laktory] Writing static df to ./data/slv_stock_prices.parquet with format 'PARQUET' and {}
[laktory] Write completed.
┌────────────────┬───────┬────────┬────────────┬────────────┬────────────┬────────────┬────────────┐
│ created_at     ┆ name  ┆ symbol ┆ open       ┆ close      ┆ high       ┆ low        ┆ volume     │
│ ---            ┆ ---   ┆ ---    ┆ ---        ┆ ---        ┆ ---        ┆ ---        ┆ ---        │
│ datetime[μs]   ┆ str   ┆ str    ┆ f64        ┆ f64        ┆ f64        ┆ f64        ┆ f64        │
╞════════════════╪═══════╪════════╪════════════╪════════════╪════════════╪════════════╪════════════╡
│ 2023-04-04     ┆ AMZN  ┆ AMZN   ┆ 103.175003 ┆ 103.129997 ┆ 103.419998 ┆ 103.072502 ┆ 3.998703e6 │
│ 13:30:00       ┆       ┆        ┆            ┆            ┆            ┆            ┆            │
│ 2023-04-06     ┆ MSFT  ┆ MSFT   ┆ 288.859985 ┆ 290.360107 ┆ 291.070007 ┆ 288.700012 ┆ 4.355298e6 │
│ 13:30:00       ┆       ┆        ┆            ┆            ┆            ┆            ┆            │
│ 2023-03-02     ┆ AMZN  ┆ AMZN   ┆ 90.589996  ┆ 90.860001  ┆ 91.004997  ┆ 90.529999  ┆ 4.143251e6 │
│ 12:30:00       ┆       ┆        ┆            ┆            ┆            ┆            ┆            │
│ 2023-10-03     ┆ AMZN  ┆ AMZN   ┆ 125.150002 ┆ 125.580002 ┆ 125.699997 ┆ 124.800003 ┆ 5.416032e6 │
│ 11:30:00       ┆       ┆        ┆            ┆            ┆            ┆            ┆            │
│ 2024-03-05     ┆ AAPL  ┆ AAPL   ┆ 170.785004 ┆ 170.470001 ┆ 170.828705 ┆ 170.149994 ┆ 4.315788e6 │
│ 12:30:00       ┆       ┆        ┆            ┆            ┆            ┆            ┆            │
│ …              ┆ …     ┆ …      ┆ …          ┆ …          ┆ …          ┆ …          ┆ …          │
│ 2023-11-30     ┆ AAPL  ┆ AAPL   ┆ 188.335007 ┆ 188.789993 ┆ 188.830002 ┆ 188.289993 ┆ 2.75059e6  │
│ 13:30:00       ┆       ┆        ┆            ┆            ┆            ┆            ┆            │
│ 2023-03-22     ┆ MSFT  ┆ MSFT   ┆ 275.850006 ┆ 277.049988 ┆ 277.149994 ┆ 275.764008 ┆ 1.790997e6 │
│ 12:30:00       ┆       ┆        ┆            ┆            ┆            ┆            ┆            │
│ 2023-01-12     ┆ GOOGL ┆ GOOGL  ┆ 91.480003  ┆ 91.510002  ┆ 91.870003  ┆ 89.75      ┆ 7.320764e6 │
│ 09:30:00       ┆       ┆        ┆            ┆            ┆            ┆            ┆            │
│ 2023-07-20     ┆ GOOGL ┆ GOOGL  ┆ 120.459999 ┆ 120.059998 ┆ 120.470001 ┆ 119.764999 ┆ 2.94552e6  │
│ 12:30:00       ┆       ┆        ┆            ┆            ┆            ┆            ┆            │
│ 2023-08-22     ┆ AAPL  ┆ AAPL   ┆ 176.922897 ┆ 177.214996 ┆ 177.429993 ┆ 176.310104 ┆ 6.823573e6 │
│ 10:30:00       ┆       ┆        ┆            ┆            ┆            ┆            ┆            │
└────────────────┴───────┴────────┴────────────┴────────────┴────────────┴────────────┴────────────┘

Spark¤

If you select PYSPARK as the DataFrame backend, Laktory will instantiate a default Spark Session, but you can register your own instead. This works using a local, a Databricks notebook or Databricks connect Spark Session:

set_spark.py
from databricks.connect import DatabricksSession

from laktory import register_spark_session

spark = DatabricksSession.builder.getOrCreate()
register_spark_session(spark)

Orchestrators¤

While local execution is ideal for small datasets or prototyping, orchestrators unlock more advanced features such as parallel processing, automatic schema management, and historical re-processing. The desired orchestrator can be configured directly within the pipeline.

pipeline.yaml
- name: stock_prices
  nodes: ...
  orchestrator:
    type: DATABRICKS_PIPELINE
    catalog: dev
    target: finance

    clusters:
    - name : default
      node_type_id: Standard_DS3_v2
      autoscale:
        min_workers: 1
        max_workers: 2

    libraries:
    - notebook:
        path: /.laktory/dlt/dlt_laktory_pl.py

The choice of orchestrator determines which resources are deployed when running the laktory deploy CLI command.

Databricks Job¤

A Databricks Job is a powerful orchestration mechanism. In this case, Laktory will create a task for each node, enabling parallel execution of nodes. Each reading and writing operation is entirely handled by Laktory source and sink.

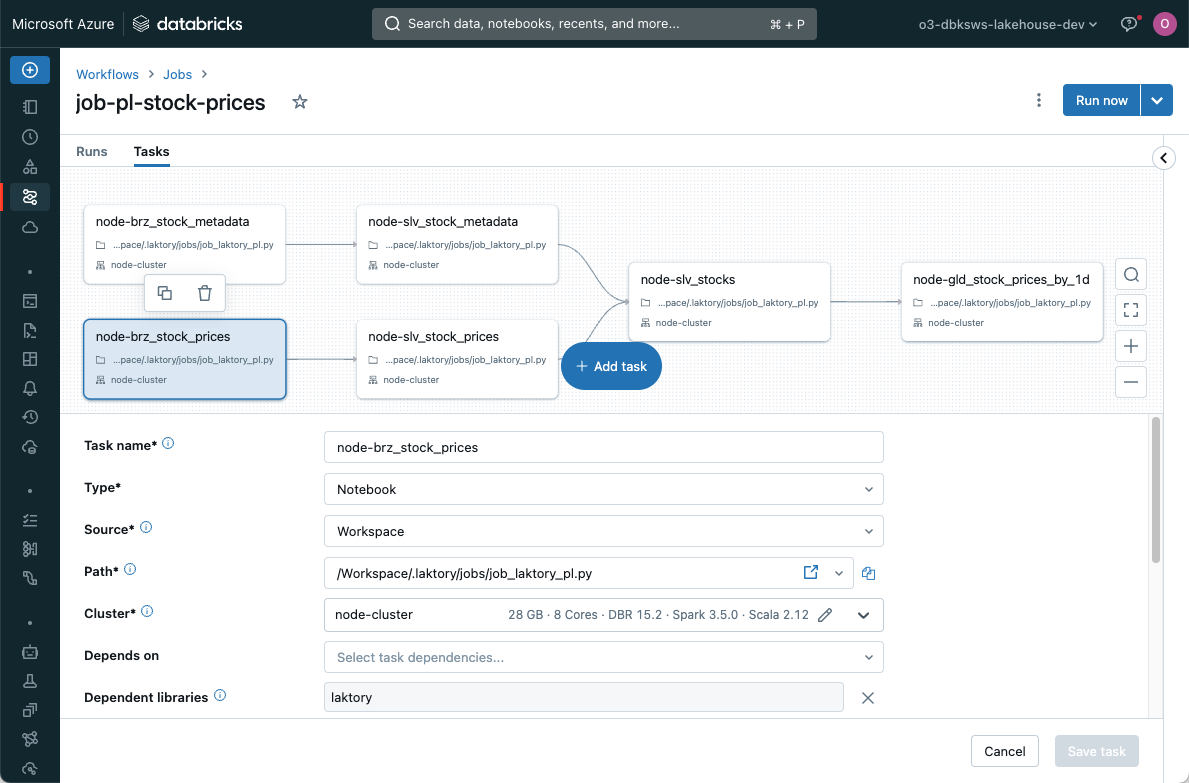

job

Each task will call a Laktory function that will read the pipeline configuration and execute a node.

Selecting the DATABRICKS_JOB orchestrator will deploy a pipeline json configuration file which can be found in your workspace under /Workspace/{laktory_root}/pipelines/{pipeline_name}/.

Databricks Lakeflow Declarative Pipeline¤

Lakeflow Declarative Pipelines offers features like automatic schema change management, continuous execution, advanced monitoring and autoscaling.

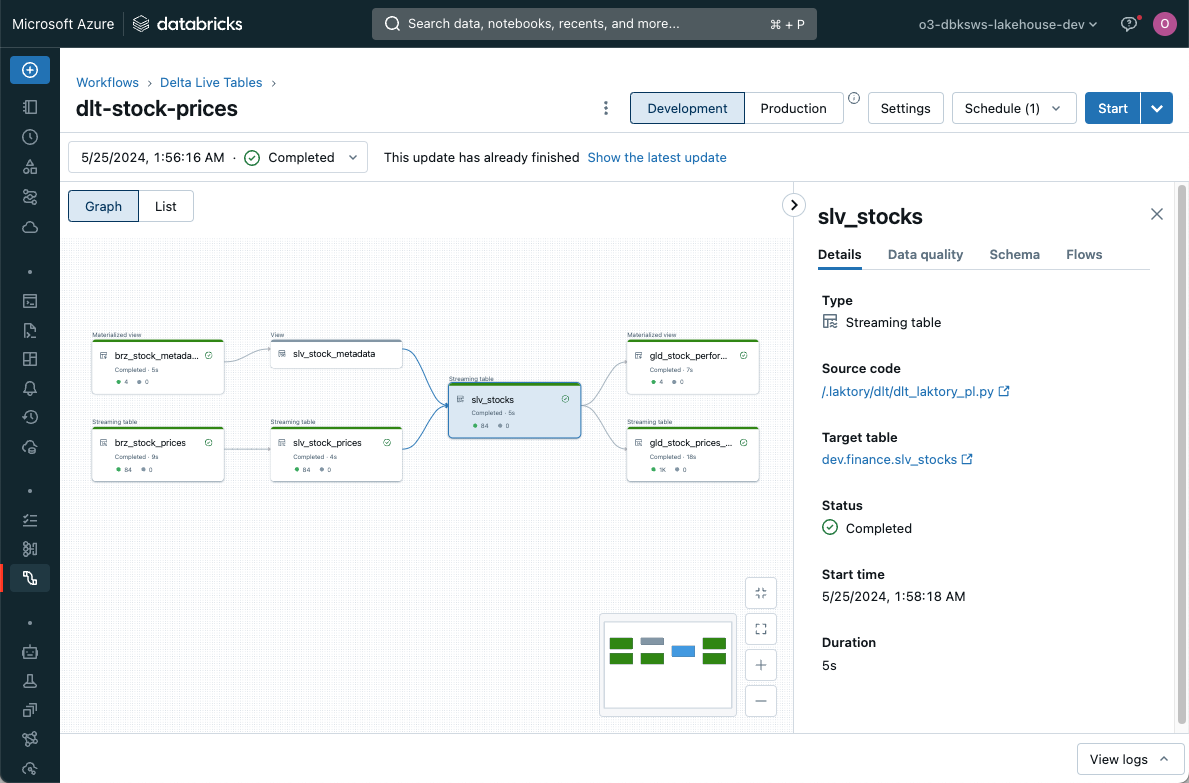

dlt

Each pipeline node runs inside a dlt.table() or dlt.view() function. In the context of Declarative Pipelines, node execution does not trigger a sink write, as this operation is internally managed by Lakeflow. When a source is a pipeline node, dlt.read() and dlt.read_stream() functions are called to ensure compatibility with the framework.

To use the DATABRICKS_PIPELINE orchestrator, you must also add the supporting notebook to your stack.

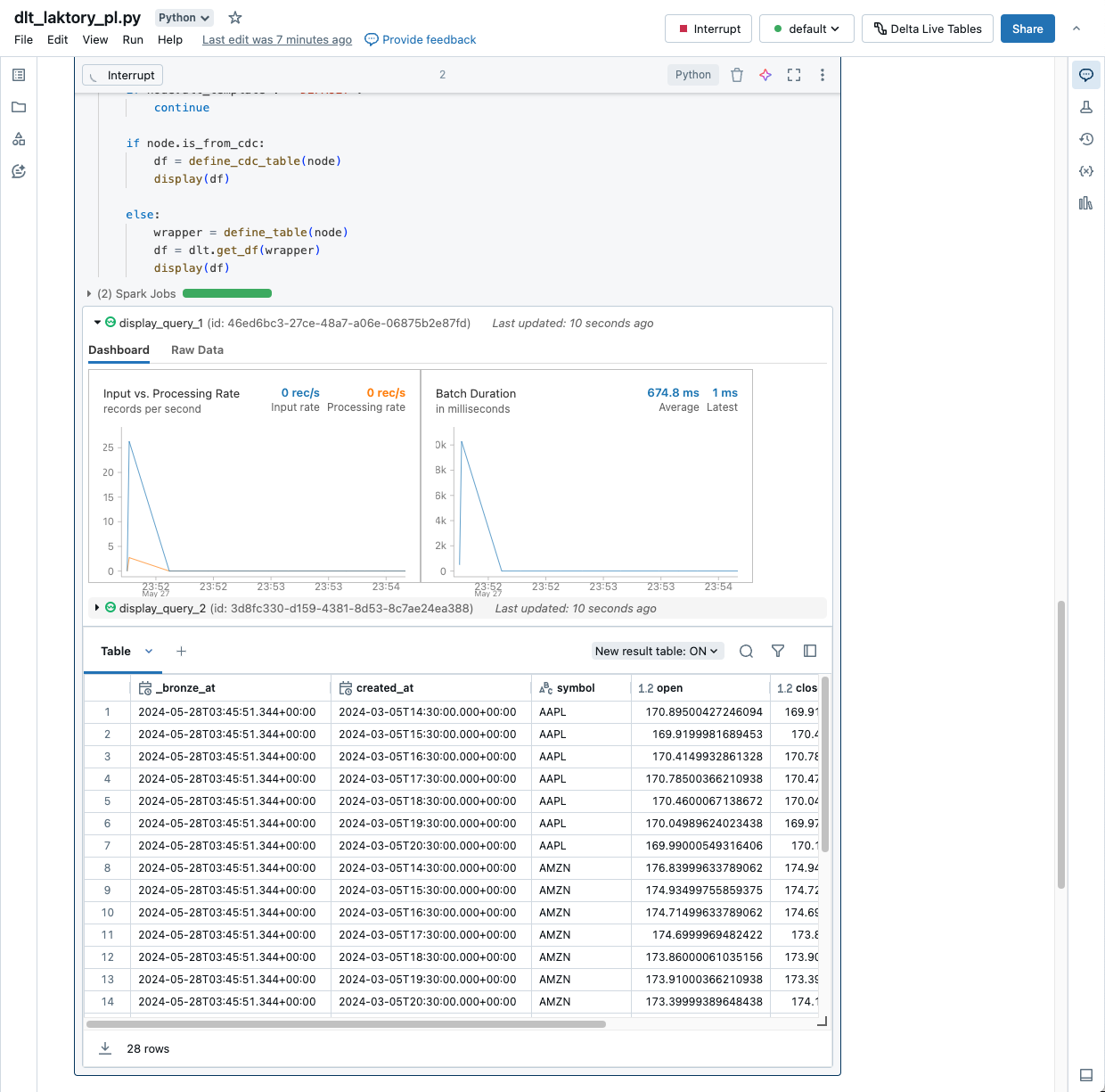

Here is a simplified version:

dlt_laktory_pl
import dlt

import laktory as lk

with open("pipeline.yaml") as fp:
    pl = lk.models.Pipeline.model_validate_yaml(fp.read())


def define_table(node, sink):
    @dlt.table(
        name=sink.dlt_name,
        comment=node.description,
    )
    def get_df():
        # Execute node
        node.execute()
        if sink and sink.is_quarantine:
            df = node.quarantine_df
        else:
            df = node.output_df

        # Return
        return df.to_native()


# Build nodes
for node in pl.nodes:
    for sink in node.sinks:
        wrapper = define_table(node, sink)
        df = lk.dlt.get_df(wrapper)
        display(df)

Selecting the DATABRICKS_PIPELINE orchestrator will deploy a pipeline json configuration file which can be found in your workspace under /Workspace/{laktory_root}/pipelines/{pipeline_name}/.

Apache Airflow¤

Support for Apache Airflow as an orchestrator is on the roadmap.

Dagster¤

Support for Dagster as an orchestrator is on the roadmap.

Streaming Operations¤

Laktory supports event-based and kappa architectures using Apache Spark Structured Streaming for continuous, scalable data processing.

By setting as_stream: True in a pipeline node's data source, the DataFrame becomes streaming-enabled, processing only new rows of data at each run instead of re-processing the entire dataset.

Streaming does not mean the pipeline is continuously running. Execution can still be scheduled, but each run is incremental. Currently, the only way to deploy a continuously running pipeline is by selecting the Databricks pipeline orchestrator with continuous: True.

For more information about streaming data, consider reading this blog post.
