Unity Catalog

The unity-catalog stack deploys users, user groups, Unity Catalogs, catalogs, and schemas. This stack is more complex than the previous ones, as it targets both the Databricks account (for user management) and the (for catalog creation).

Create Stack¤

To create the Unity Catalog stack, run:

laktory quickstart -t unit-catalog

Files¤

After running the command, the following structure will be generated:

.
├── read_env.sh
├── resources
│   ├── catalogs.yaml
│   ├── groups.yaml
│   ├── schemas.yaml
│   └── users.yaml
├── stack.yaml

Resources Directory¤

The files in the resources directory are referenced in the stack.yaml file and declare various resources to be deployed. Each file specifies one or more resources.

Stack Providers¤

In the stack.yaml, you will find the definition for two providers: databricks (for the account) and databricks.dev (for the workspace). These may be formatted slightly differently if you’re using Pulumi.

providers:

  databricks:
    host: https://accounts.azuredatabricks.net
    account_id: ${vars.DATABRICKS_ACCOUNT_ID}
    azure_tenant_id: ${vars.AZURE_TENANT_ID}
    azure_client_id: ${vars.AZURE_CLIENT_ID}
    azure_client_secret: ${vars.AZURE_CLIENT_SECRET}
    auth_type: azure-client-secret

  databricks.dev:
    alias: dev
    host: ${vars.DATABRICKS_HOST_DEV}
    token: ${vars.DATABRICKS_TOKEN_DEV}

The databricks provider deploys resources to your Databricks account, while databricks.dev handles deployments to the workspace. Although Unity Catalog resources are shared across workspaces, catalogs, schemas, and tables must still be deployed to a specific workspace, which is why the workspace provider is needed.

In your resource definitions, the workspace provider is referenced like this:

options:
  provider: ${resources.databricks.dev}

Set Environment Variables¤

In this setup, more environment variables are required to deploy resources to both the Databricks account and workspace.

For the workspace provider:

DATABRICKS_HOST_DEV: The URL of your Databricks development workspace
DATABRICKS_TOKEN_DEV: A valid workspace token

For the account provider:

DATABRICKS_ACCOUNT_ID: The Databricks account ID
AZURE_TENANT_ID: You Azure tenant ID
AZURE_CLIENT_ID: The ID of the Azure Service Principal, which must be added as a Databricks account administrator
AZURE_CLIENT_SECRET: The client secret of the Azure Service Principal

This setup is specific to Azure, but other authentication methods are available here

Deploy Stack¤

Once your environment variables are set, you are ready to deploy the stack. If you're using Terraform, first run the initialization command:

laktory init --env dev

Then, deploy the stack:

laktory deploy --env dev

Terraform will generate an execution plan, and you'll see the resources that will be created. Confirm the actions by typing "yes" when prompted.

(laktory) osoucy@countach unity-catalog % laktory deploy

Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
  + create

Terraform will perform the following actions:

  # databricks_catalog.catalog-lqs-dev will be created
  + resource "databricks_catalog" "catalog-lqs-dev" {
      + enable_predictive_optimization = (known after apply)
      + force_destroy                  = true
      + id                             = (known after apply)
      + isolation_mode                 = "OPEN"
      + metastore_id                   = (known after apply)
      + name                           = "lqs-dev"
      + owner                          = (known after apply)
    }

  [...]

  # databricks_user_role.user-role-account_admin-user-kubic-okube-ai will be created
  + resource "databricks_user_role" "user-role-account_admin-user-kubic-okube-ai" {
      + id      = (known after apply)
      + role    = "account_admin"
      + user_id = (known after apply)
    }

Plan: 29 to add, 0 to change, 0 to destroy.

Do you want to perform these actions?
  Terraform will perform the actions described above.
  Only 'yes' will be accepted to approve.

  Enter a value: yes

databricks_catalog.catalog-lqs-prd: Creating...
databricks_catalog.catalog-lqs-dev: Creating...
databricks_group.group-metastore-admins: Creating...
databricks_group.group-workspace-admins: Creating...
databricks_user.user-jane-doe-okube-ai: Creating...
databricks_group.group-laktory-friends: Creating...
databricks_user.user-kubic-okube-ai: Creating...
databricks_user.user-john-doe-okube-ai: Creating...
databricks_group.group-laktory-friends: Creation complete after 1s [id=978906969228198]
[...]
databricks_grants.grants-schema-lqs-prd-sandbox: Creation complete after 1s [id=schema/lqs-prd.sandbox]

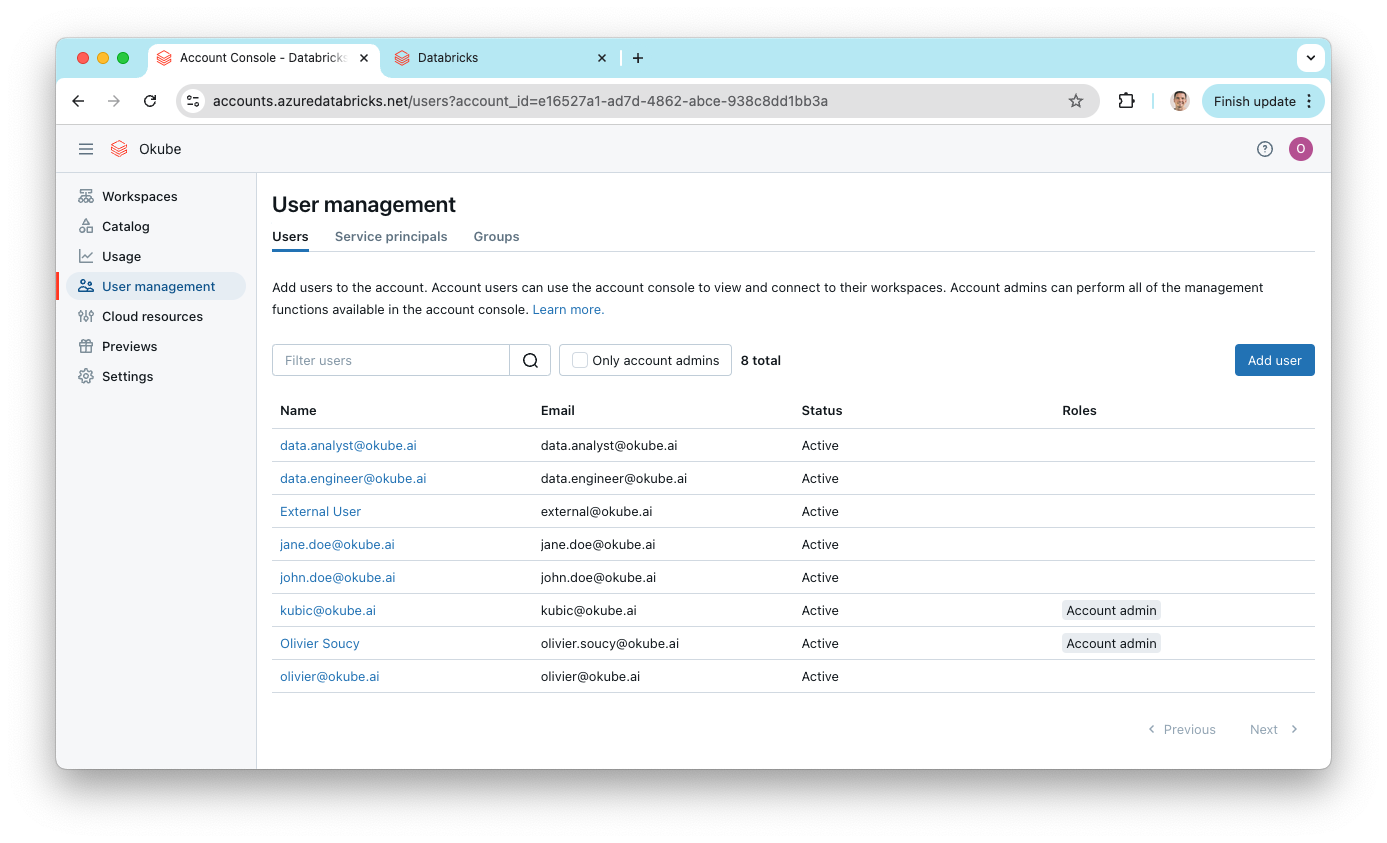

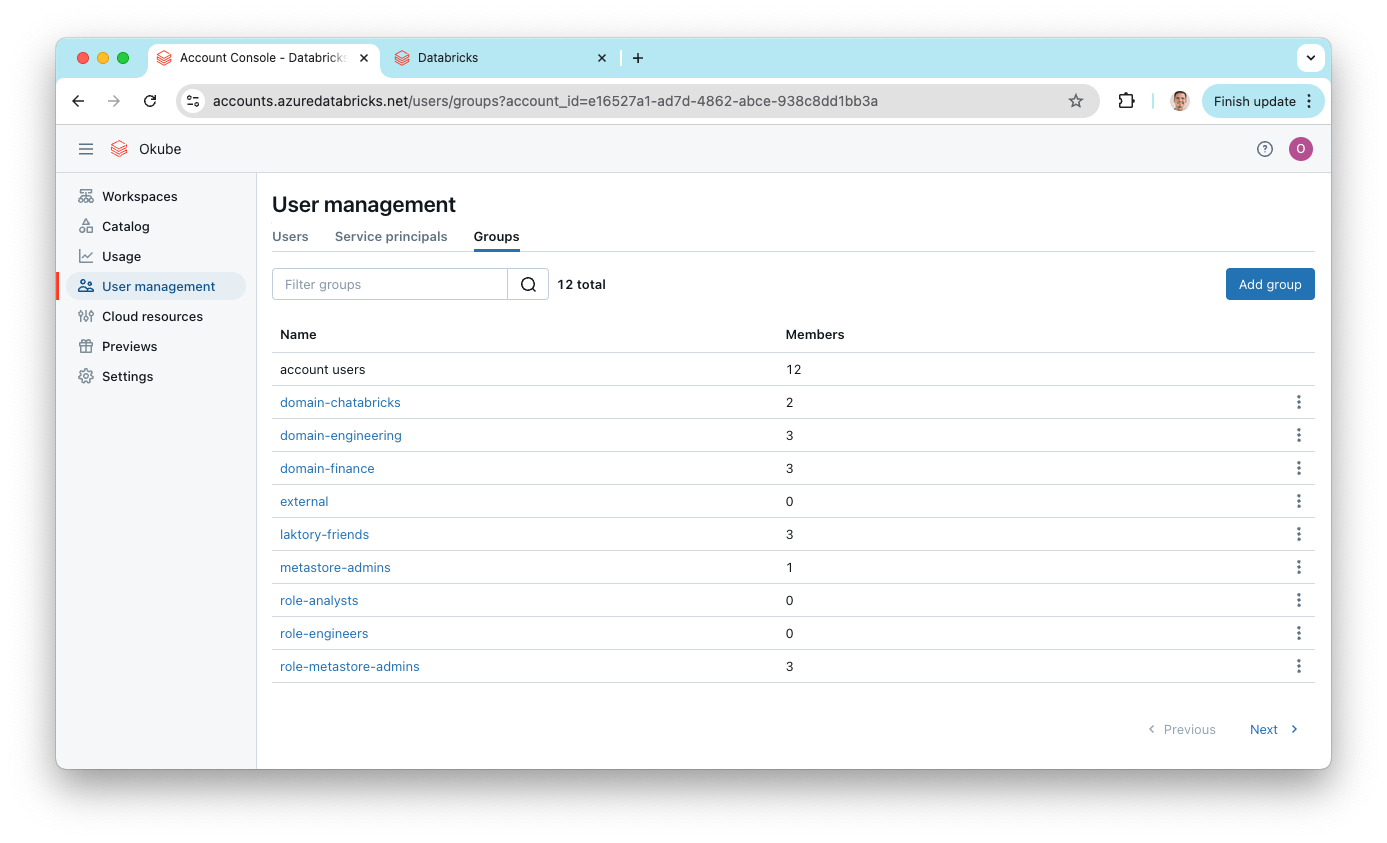

After the deployment is complete, you can check the Databricks account for the newly created users and groups. account-users account-groups

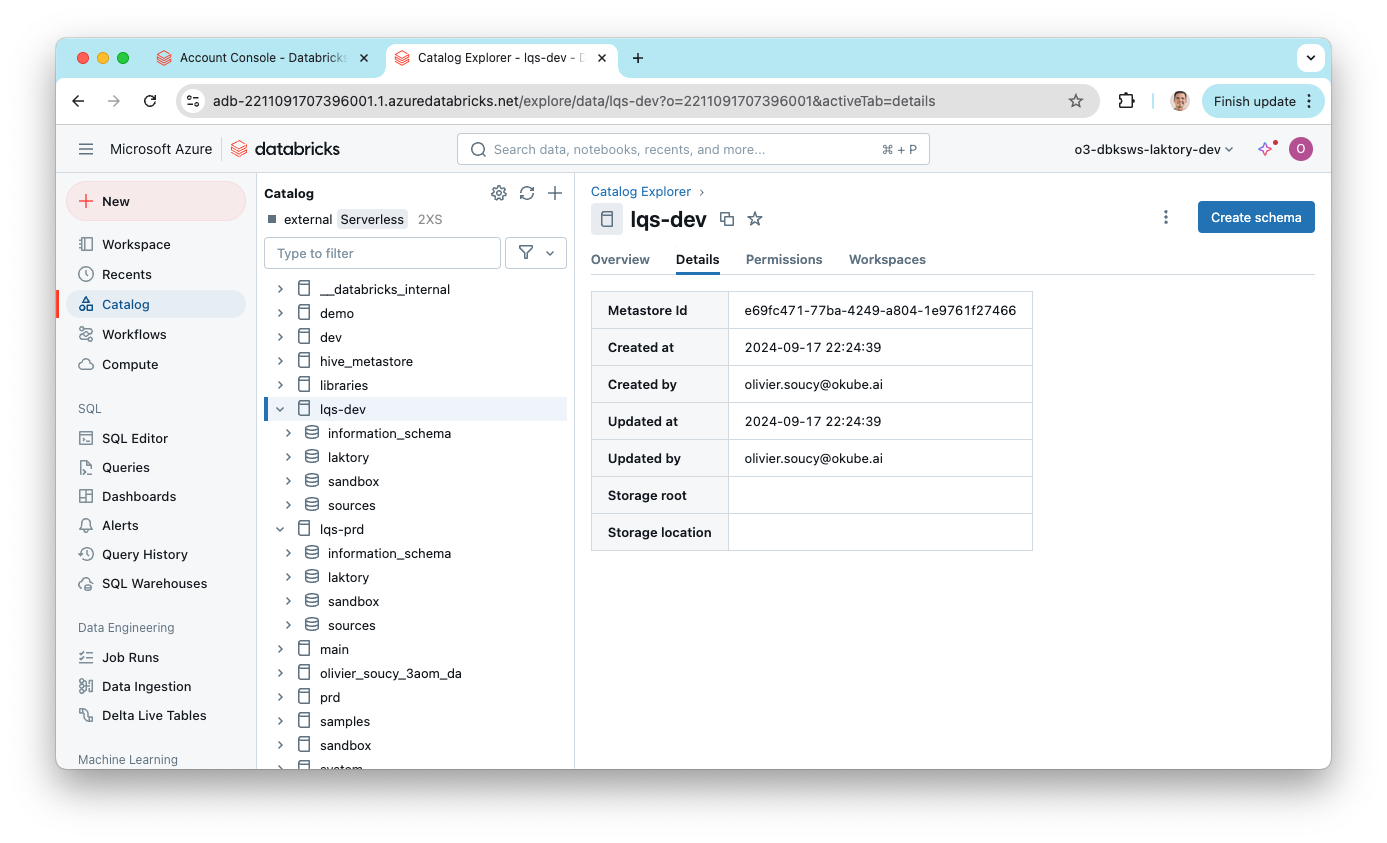

In the workspace, you'll see the catalogs and schemas that were deployed. workspace-schemas

Demo¤

As part of the Lakhouse As Code mini-series, watch how to set the foundation for Unity Catalog using Laktory and the unity-catalog quickstart.

If you prefer, you can also read the blog post on the same topic.
