Workflows

The workflows stack sets up and deploys three key components: a "Hello World!" Databricks job, a Laktory pipeline for stock prices (as a Databricks Job and as a Delta Live Table), and all the necessary supporting resources.

Create Stack¤

To create the stack, use the following command:

laktory quickstart -t workflows

Files¤

After running the quickstart command, the following structure is created:

.
├── data
│   └── stock_prices.json
├── notebooks
│   ├── dlt
│   │   └── dlt_laktory_pl.py
│   └── jobs
│       ├── job_hello.py
│       └── job_laktory_pl.py
├── read_env.sh
├── requirements.txt
├── resources
│   ├── dbfsfiles.yaml
│   ├── job-hello.yaml
│   ├── notebooks.yaml
│   ├── pl-stocks-dlt.yaml
│   └── pl-stocks-job.yaml
├── scripts
│   ├── debug_pl.py
├── sql
│   └── slv_stock_prices.sql
├── stack.yaml

Resources Directory¤

The files in the resources directory are referenced in the stack.yaml file and declare various resources to be deployed. Each file specifies one or more resources.

Notebooks Directory¤

The notebooks directory contains the notebooks to be deployed to the Databricks workspace, as defined in the resources/notebooks.yaml file. These notebooks are also referenced in job and pipeline definitions.

Data Directory¤

For the pipeline to run, a sample stock_prices.json data file is provided and will be uploaded to DBFS as declared in resources/dbfsfiles.yaml.

Scripts Directory¤

The debug_pl.py script can be used to locally (from your IDE) develop, debug and execute the pl-stocks-job pipeline.

Set Environment Variables¤

Before deployment, ensure the following environment variables are properly set, as referenced in the stack.yaml file:

  • DATABRICKS_HOST: The URL of your Databricks workspace
  • DATABRICKS_TOKEN: A valid Databricks personal access token

Deploy Stack¤

Now you are ready to deploy your stack. If you're using Terraform, start by initializing the environment:

laktory init --env dev

Then, deploy the stack:

laktory deploy --env dev

The deployment process will refresh the state of your Databricks resources and generate an execution plan using Terraform. Once the plan is generated, simply confirm by typing "yes" to proceed.

(laktory) osoucy@countach workflows % laktory deploy --env dev
databricks_dbfs_file.dbfs-file-stock-prices: Refreshing state... [id=/Workspace/.laktory/data/stock_prices/stock_prices.json]
databricks_notebook.notebook-job-laktory-pl: Refreshing state... [id=/.laktory/jobs/job_laktory_pl.py]
databricks_workspace_file.workspace-file-laktory-pipelines-pl-stocks-spark-dlt-json: Refreshing state... [id=/.laktory/pipelines/pl-stocks-spark-dlt.json]
databricks_workspace_file.workspace-file-laktory-pipelines-pl-stocks-sql-json: Refreshing state... [id=/.laktory/pipelines/pl-stocks-sql.json]
databricks_notebook.notebook-dlt-laktory-pl: Refreshing state... [id=/.laktory/dlt/dlt_laktory_pl.py]
databricks_notebook.notebook-job-hello: Refreshing state... [id=/.laktory/jobs/job_hello.py]
databricks_pipeline.pl-stocks-spark-dlt: Refreshing state... [id=dc28dbfb-0407-42fa-979f-94e17fa1fd30]
databricks_job.job-hello: Refreshing state... [id=808120666287598]
databricks_job.pipeline-databricks-job-job-pl-stock-sql: Refreshing state... [id=210130692451027]
databricks_permissions.permissions-job-hello: Refreshing state... [id=/jobs/808120666287598]
databricks_permissions.permissions-workspace-file-laktory-pipelines-pl-stocks-spark-dlt-json: Refreshing state... [id=/files/4435054900343469]
databricks_permissions.permissions-workspace-file-laktory-pipelines-pl-stocks-sql-json: Refreshing state... [id=/files/4435054900343468]

Note: Objects have changed outside of Terraform

Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
  + create
-/+ destroy and then create replacement

Terraform will perform the following actions:

  # databricks_dbfs_file.dbfs-file-stock-prices will be created
  + resource "databricks_dbfs_file" "dbfs-file-stock-prices" {
      + dbfs_path = (known after apply)
      + file_size = (known after apply)
      + id        = (known after apply)
      + md5       = "different"
      + path      = "/Workspace/.laktory/data/stock_prices/stock_prices.json"
      + source    = "./data/stock_prices.json"
    }
    [...]

Plan: 12 to add, 0 to change, 1 to destroy.

Do you want to perform these actions?
  Terraform will perform the actions described above.
  Only 'yes' will be accepted to approve.

  Enter a value: yes

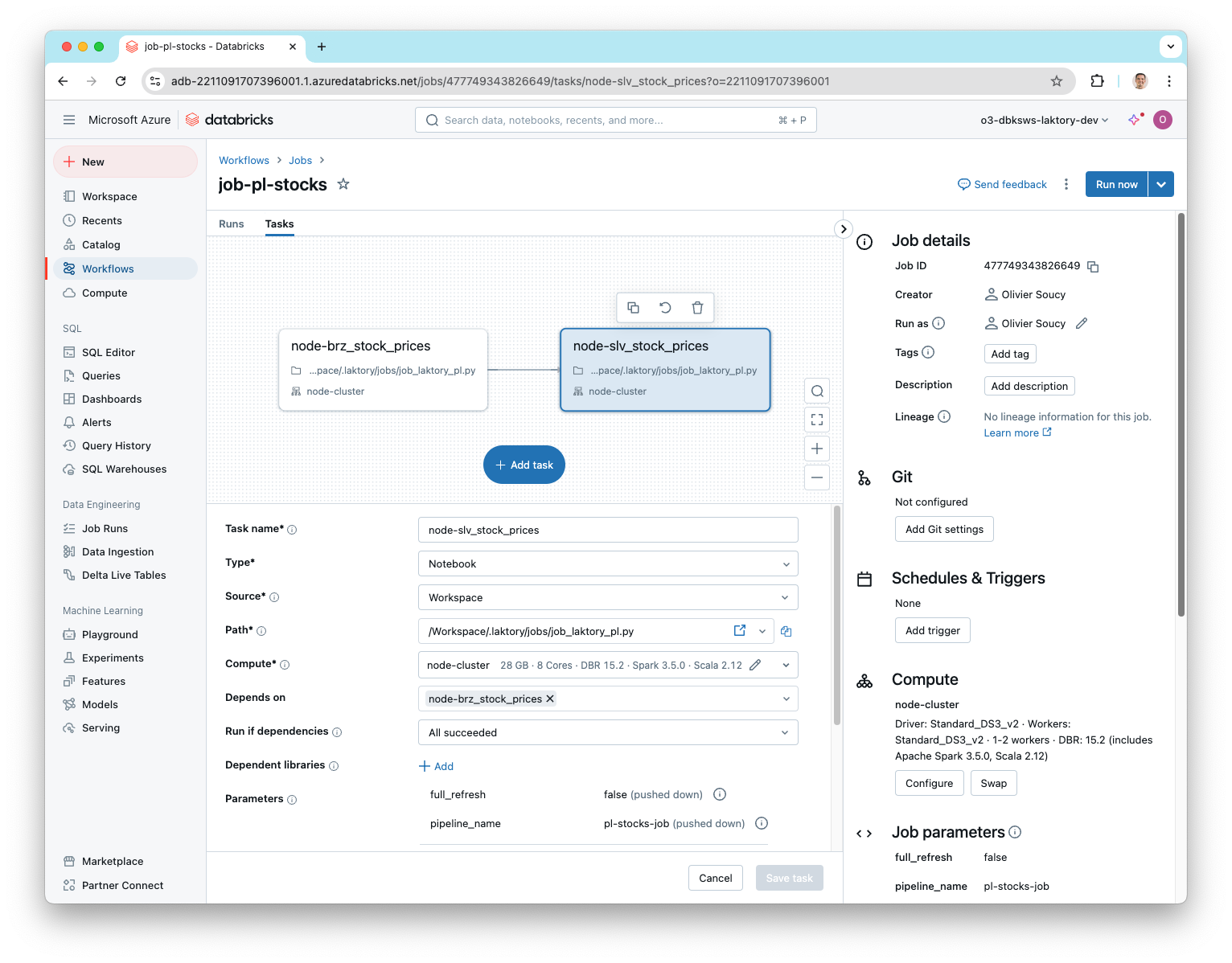

After deployment, you can check the Databricks workspace to confirm that the pipeline job has been successfully deployed.

pl-stocks

When a Laktory pipeline is deployed as a job, you don't have to manually create each task, they are automatically created based on the nodes defined in your pipeline.

Develop Pipeline Job¤

With Laktory, you have the ability to prototype, test and debug your pipeline directly from your IDE. Open the scripts/debug_pl.py script, add your cluster ID and execute the script. A remote Spark session will be passed up execution and you will be able to preview and explore the resulting DataFrames.

runfile('debug_pl.py', wdir='./')
resource_name_='pl-stocks-job' options=ResourceOptions(variables={}, depends_on=[], provider=None, ignore_changes=None, aliases=None, delete_before_replace=True, import_=None, parent=None, replace_on_changes=None) lookup_existing=None variables={} databricks_job=PipelineDatabricksJob(resource_name_=None, options=ResourceOptions(variables={}, depends_on=[], provider=None, ignore_changes=None, aliases=None, delete_before_replace=True, import_=None, parent=None, replace_on_changes=None), lookup_existing=None, variables={}, access_controls=[], clusters=[], continuous=None, control_run_state=None, email_notifications=None, format=None, health=None, max_concurrent_runs=None, max_retries=None, min_retry_interval_millis=None, name='job-pl-stock-sql', notification_settings=None, parameters=[JobParameter(variables={}, default='pl-stocks-sql', name='pipeline_name'), JobParameter(variables={}, default='false', name='full_refresh')], retry_on_timeout=None, run_as=None, schedule=None, tags={}, tasks=[JobTask(variables={}, condition_task=None, depends_ons=[], description=None, email_notifications=None, existing_cluster_id=None, health=None, job_cluster_key=None, libraries=None, max_retries=None, min_retry_interval_millis=None, notebook_task=JobTaskNotebookTask(variables={}, notebook_path='/.laktory/jobs/job_laktory_pl.py', base_parameters={'node_name': 'brz_stock_prices_sql'}, source=None), notification_settings=None, pipeline_task=None, retry_on_timeout=None, run_if=None, run_job_task=None, sql_task=None, task_key='node-brz_stock_prices_sql', timeout_seconds=None), JobTask(variables={}, condition_task=None, depends_ons=[JobTaskDependsOn(variables={}, task_key='node-brz_stock_prices_sql', outcome=None)], description=None, email_notifications=None, existing_cluster_id=None, health=None, job_cluster_key=None, libraries=None, max_retries=None, min_retry_interval_millis=None, notebook_task=JobTaskNotebookTask(variables={}, notebook_path='/.laktory/jobs/job_laktory_pl.py', base_parameters={'node_name': 'slv_stock_prices_sql'}, source=None), notification_settings=None, pipeline_task=None, retry_on_timeout=None, run_if=None, run_job_task=None, sql_task=None, task_key='node-slv_stock_prices_sql', timeout_seconds=None)], timeout_seconds=None, trigger=None, webhook_notifications=None, laktory_version=None, notebook_path=None) dataframe_backend='SPARK' dlt=None name='pl-stocks-sql' nodes=[PipelineNode(variables={}, add_layer_columns=True, dlt_template='DEFAULT', dataframe_backend='SPARK', description=None, drop_duplicates=None, drop_source_columns=None, transformer=None, expectations=[], layer=None, name='brz_stock_prices_sql', primary_key=None, sink=TableDataSink(variables={}, mode='OVERWRITE', write_options={}, catalog_name=None, checkpoint_location=None, format='DELTA', schema_name=None, table_name='brz_stock_prices_sql', warehouse='DATABRICKS'), source=FileDataSource(variables={}, as_stream=False, broadcast=False, cdc=None, dataframe_backend='SPARK', drops=None, filter=None, limit=None, mock_df=None, renames=None, sample=None, selects=None, watermark=None, format='JSON', header=True, multiline=False, path='dbfs:/Workspace/.laktory/data/stock_prices/', read_options={}, schema_location=None), timestamp_key=None), PipelineNode(variables={}, add_layer_columns=True, dlt_template='DEFAULT', dataframe_backend='SPARK', description=None, drop_duplicates=None, drop_source_columns=None, transformer=SparkChain(variables={}, dataframe_backend='SPARK', nodes=[SparkChainNode(variables={}, dataframe_backend='SPARK', func_args=[], func_kwargs={}, func_name=None, sql_expr='SELECT\n    cast(data.created_at AS TIMESTAMP) AS created_at,\n    data.symbol AS symbol,\n    data.open AS open,\n    data.close AS close\nFROM\n    {df}\n', with_column=None, with_columns=[]), SparkChainNode(variables={}, dataframe_backend='SPARK', func_args=[], func_kwargs={'subset': ['created_at', 'symbol']}, func_name='drop_duplicates', sql_expr=None, with_column=None, with_columns=[])]), expectations=[], layer=None, name='slv_stock_prices_sql', primary_key=None, sink=TableDataSink(variables={}, mode='OVERWRITE', write_options={}, catalog_name=None, checkpoint_location=None, format='DELTA', schema_name=None, table_name='slv_stock_prices_sql', warehouse='DATABRICKS'), source=PipelineNodeDataSource(variables={}, as_stream=False, broadcast=False, cdc=None, dataframe_backend='SPARK', drops=None, filter=None, limit=None, mock_df=None, renames=None, sample=None, selects=None, watermark=None, node_name='brz_stock_prices_sql', node=PipelineNode(variables={}, add_layer_columns=True, dlt_template='DEFAULT', dataframe_backend='SPARK', description=None, drop_duplicates=None, drop_source_columns=None, transformer=None, expectations=[], layer=None, name='brz_stock_prices_sql', primary_key=None, sink=TableDataSink(variables={}, mode='OVERWRITE', write_options={}, catalog_name=None, checkpoint_location=None, format='DELTA', schema_name=None, table_name='brz_stock_prices_sql', warehouse='DATABRICKS'), source=FileDataSource(variables={}, as_stream=False, broadcast=False, cdc=None, dataframe_backend='SPARK', drops=None, filter=None, limit=None, mock_df=None, renames=None, sample=None, selects=None, watermark=None, format='JSON', header=True, multiline=False, path='dbfs:/Workspace/.laktory/data/stock_prices/', read_options={}, schema_location=None), timestamp_key=None)), timestamp_key=None)] orchestrator='DATABRICKS_JOB' udfs=[] workspacefile=None
laktory.models.pipeline - INFO - Executing Pipeline
laktory.models.pipelinenode - INFO - Executing pipeline node brz_stock_prices (None)
laktory.models.datasources.filedatasource - INFO - Reading dbfs:/Workspace/.laktory/data/stock_prices/ as static
laktory.models.pipelinenode - INFO - Executing pipeline node slv_stock_prices (None)
laktory.models.datasources.pipelinenodedatasource - INFO - Reading pipeline node brz_stock_prices from output DataFrame
laktory.models.transformers.basechain - INFO - Executing SPARK chain
laktory.models.transformers.basechain - INFO - Executing SPARK chain node 0 (SparkChainNode).
laktory.models.transformers.sparkchainnode - INFO - DataFrame df as
SELECT
    cast(data.created_at AS TIMESTAMP) AS created_at,
    data.symbol AS symbol,
    data.open AS open,
    data.close AS close
FROM
    {df}
laktory.models.transformers.basechain - INFO - Executing SPARK chain node 1 (SparkChainNode).
laktory.models.transformers.sparkchainnode - INFO - DataFrame df as drop_duplicates(subset=['created_at', 'symbol'])
+-------------------+------+------------------+------------------+
|created_at         |symbol|open              |close             |
+-------------------+------+------------------+------------------+
|2024-03-05 18:30:00|AAPL  |170.4600067138672 |170.04400634765625|
|2024-03-05 17:30:00|AMZN  |174.6999969482422 |173.8701934814453 |
|2024-03-05 16:30:00|AAPL  |170.4149932861328 |170.78500366210938|
|2024-03-05 15:30:00|AAPL  |169.9199981689453 |170.4199981689453 |
|2024-03-05 19:30:00|AMZN  |173.91000366210938|173.39500427246094|
|2024-03-05 14:30:00|MSFT  |413.0             |405.25            |
|2024-03-05 16:30:00|GOOGL |131.52999877929688|133.0850067138672 |
|2024-03-05 17:30:00|AAPL  |170.78500366210938|170.47000122070312|
|2024-03-05 18:30:00|GOOGL |132.7449951171875 |132.32000732421875|
|2024-03-05 19:30:00|GOOGL |132.3249969482422 |132.04010009765625|
+-------------------+------+------------------+------------------+
only showing top 10 rows

Run Pipeline Job¤

You can now run your pipeline either from the Databricks UI or using the Laktory CLI:

laktory run --env dev --job pl-stock-job
This will start the pipeline run and provide real-time status updates for each task in the job. The output will show the job's progress, including any tasks that are pending, running, or completed.
(laktory) osoucy@countach workflows % laktory run --env dev --job job-pl-stocks
INFO - Getting id for job job-pl-stocks
INFO - Getting id for pipeline pl-stocks-dlt
INFO - Getting id for job job-hello
INFO - Job job-pl-stocks run started...
INFO - Job job-pl-stocks run URL: https://adb-2211091707396001.1.azuredatabricks.net/?o=2211091707396001#job/477749343826649/run/971871528017861
INFO - Job job-pl-stocks state: RUNNING
INFO -    Task job-pl-stocks.node-brz_stock_prices state: PENDING
INFO -    Task job-pl-stocks.node-slv_stock_prices state: BLOCKED
INFO -    Task job-pl-stocks.node-brz_stock_prices state: RUNNING
INFO -    Task job-pl-stocks.node-brz_stock_prices state: TERMINATED
INFO -    Task job-pl-stocks.node-slv_stock_prices state: PENDING
INFO -    Task job-pl-stocks.node-slv_stock_prices state: RUNNING
INFO - Job job-pl-stocks state: TERMINATED
INFO -    Task job-pl-stocks.node-slv_stock_prices state: TERMINATED
INFO - Job job-pl-stocks run terminated after  123.04 sec with RunLifeCycleState.TERMINATED ()
INFO - Task job-pl-stocks.node-brz_stock_prices terminated with RunResultState.SUCCESS ()
INFO - Task job-pl-stocks.node-slv_stock_prices terminated with RunResultState.SUCCESS ()

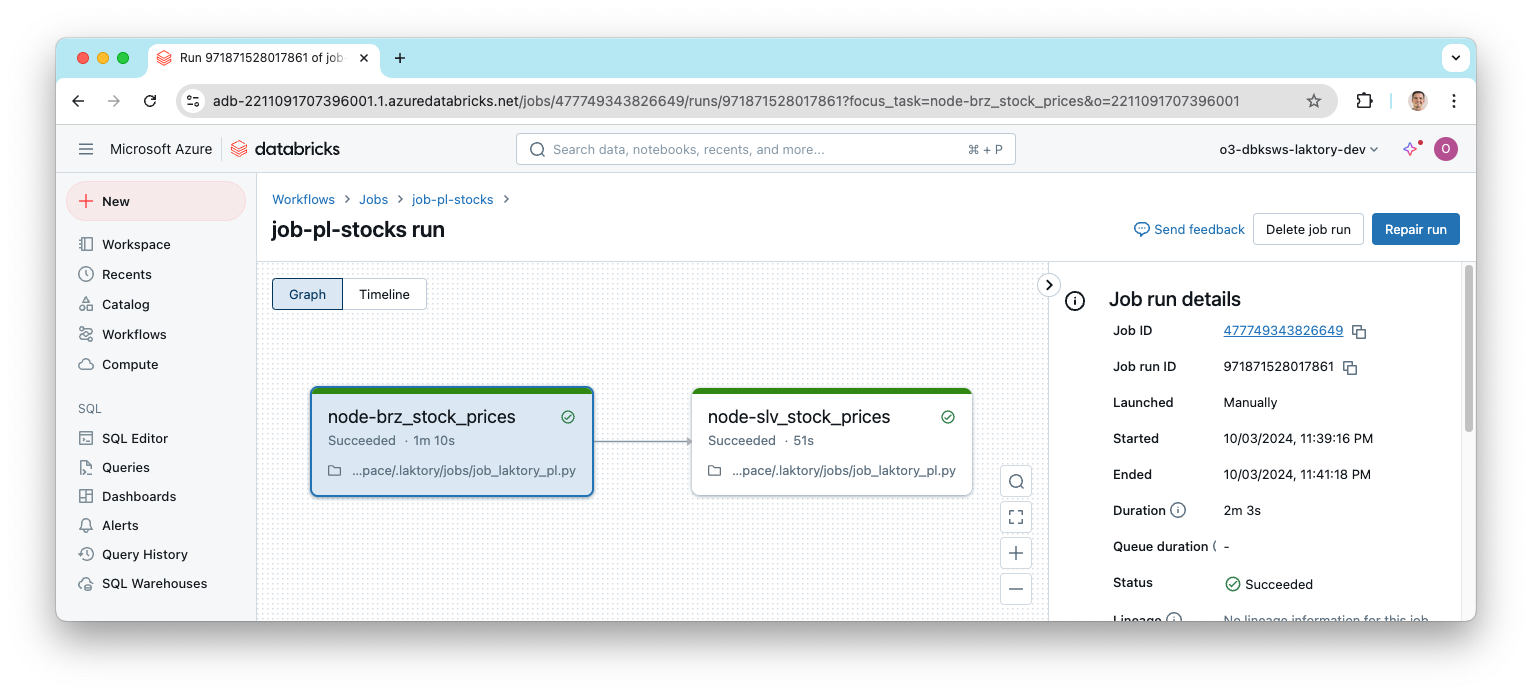

You can also lookup the resulting run from the workspace.

pl-stocks-run

Run Pipeline DLT¤

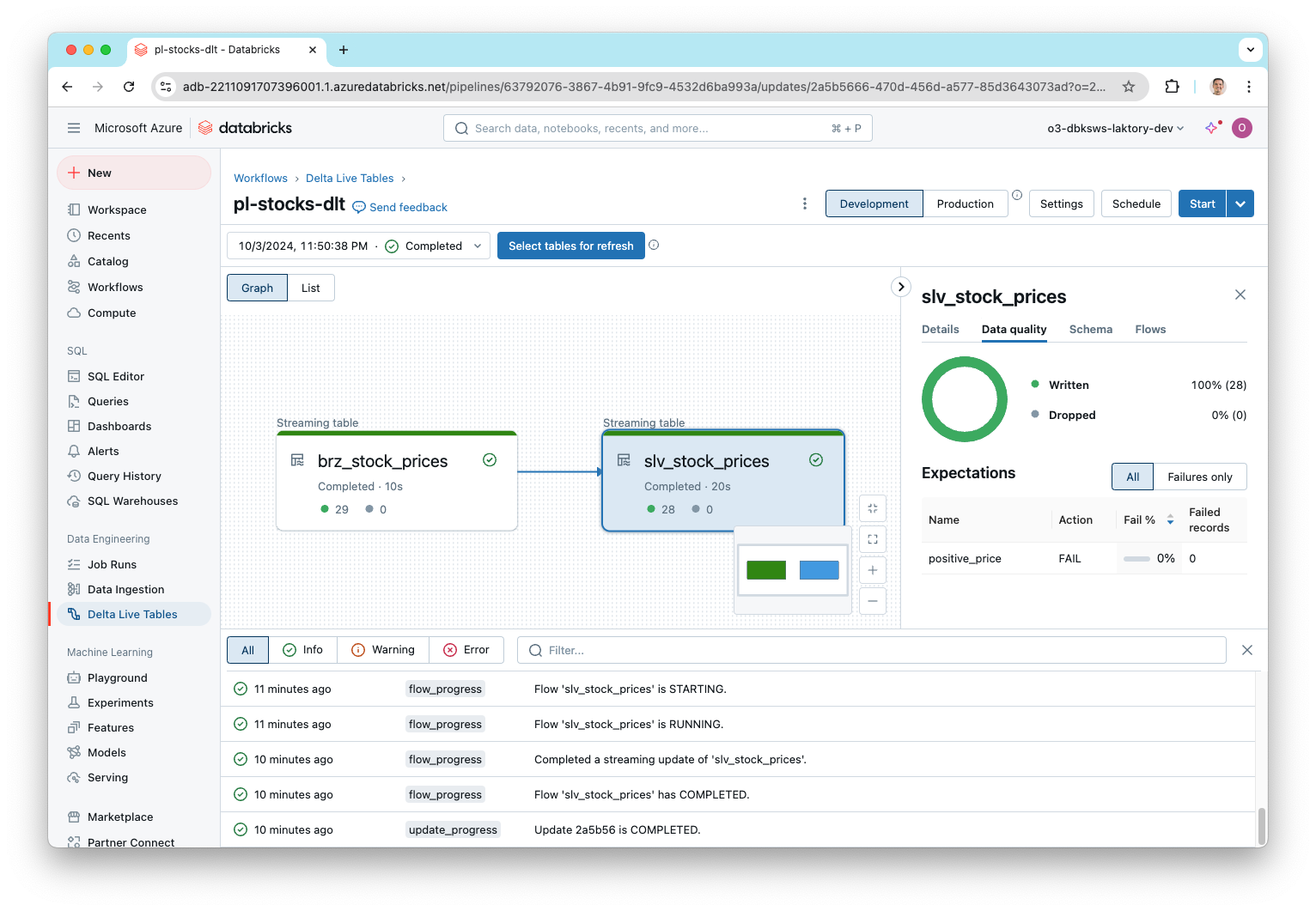

For the pipeline we deployed as a Delta Live Tables, we can also run it using the CLI or simply from the UI.

dlt-pl-stocks-run
